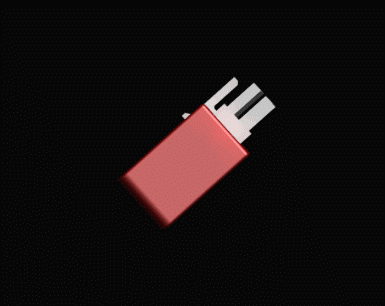

Power and Signal Overmold Styles



Power and Signal Overmold Styles

45

90

180

Mouse-Over on LINKS ABOVE for Product Views

           then....

View
3D Drawings and Expanded Product Galleries



This configuration is offered in 3 standard cable exit styles. 180 degree, 90 degree and 45 degree cable exits from the overmold body.  In addition some of these style overmolds are available as slip-on  “BOOTS”  that  are discrete parts that slip on over the cable and connector.

Custom cable exits are also available.

ISC's modular tooling design provides maximum flexibility in interchangeable sections, providing a lower cost approach to tooling. Click here for further information....

Optional flexible strain relief's can be added as a separate lamination to this mold design at any time. See section "Strain Relief's" for the options.
